Model Predictive Direct Torque Control with Finite Control Set for PMSM Drive

Model Predictive Direct Torque Control with Finite Control Set for PMSM Drive

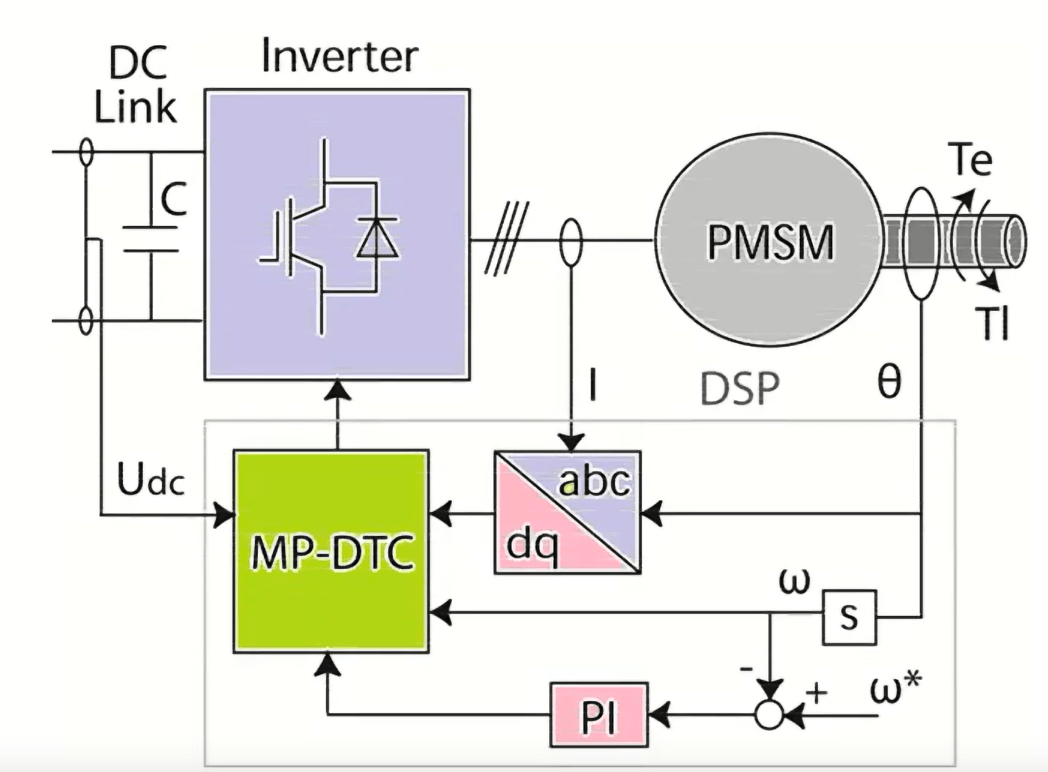

This Simulink model provides a complete implementation of Model Predictive Direct Torque Control (MPDTC) with a Finite Control Set (FCS) for a Permanent Magnet Synchronous Motor (PMSM) drive. The model is designed for researchers, engineers, and students working in the field of advanced motor control and power electronics.

Key Features:

• Finite Control Set Model Predictive Control (FCS-MPC): Utilizes discrete switching states of the inverter to minimize torque and flux errors.

• High-Performance PMSM Drive: Ensures fast torque response, reduced ripple, and efficient motor operation.

• Customizable Parameters: Users can easily modify motor, inverter, and controller parameters for their application.

• Ready-to-Simulate Design: Fully built in MATLAB/Simulink environment with scope outputs for torque, speed, current, and flux analysis.

• Educational & Research Use: Suitable for academic projects, industrial research, and advanced learning in predictive control of electrical drives.

This model offers a practical and reliable platform to study predictive torque control strategies and evaluate their performance compared to conventional DTC or vector control methods.
